SceneDB 2.0: The Cross-Device Spatial Database

Part 0: Context

0.1 The Problem That Gave Birth to SceneDB

Every system in a legacy engine owns its own copy of the world. The renderer keeps a scene graph. The physics engine builds a broadphase from scratch each frame. The editor maintains a selection set and a hierarchy panel. AI systems query spatial trees they rebuilt after the last mutation. Each copy is slightly different because each system cares about a different subset of properties, and each system updates its copy on a different schedule.

The renderer needs mesh handles, material indices, and transform matrices. The physics engine needs collision shapes, velocities, and broadphase AABBs. The editor needs selection volumes, hierarchy relationships, and undo state. None of these are the same data, but they all describe the same objects. Keeping them consistent is the hidden cost that grows with every new subsystem.

A typical frame in a legacy engine runs something like this. The game thread mutates transforms. It notifies the renderer that the scene graph is dirty. The renderer walks its scene graph, rebuilds a list of visible objects on the CPU, and uploads transforms to the GPU. Meanwhile the physics engine fetches the updated positions from its own representation, rebuilds its broadphase, and runs collision detection. The editor, which needs to display the same scene, reads from a third copy or polls the game thread directly. Each path is a hand-written sync channel that must be maintained, debugged, and kept performant as the entity count climbs.

At small scale, a few hundred objects, the approach works. The copies are small. The sync overhead is noise. The engineering cost of maintaining parallel data structures is invisible. The renderer uploads everything because uploading everything is cheap when there is almost nothing to upload. The physics broadphase rebuilds from scratch because rebuilding from scratch for 300 bodies takes microseconds. The editor reads the game thread's state directly because the lock contention is negligible.

At medium scale, a few thousand objects, the noise becomes a line item in the frame budget. Transform uploads start showing up in the profiler. The physics broadphase rebuild takes measurable time. The editor panel starts to lag behind the game view by a frame or two. The team adds dirty flags and change lists to the transform sync path. The physics engine switches to incremental broadphase updates. Each subsystem adds a tracking layer: a set of changed entity IDs, a per-frame diff buffer, a deferred update queue. Each tracking layer is a new surface for desync bugs. A dirty flag that is not cleared. A change list that overflows. An update that arrives after the consumer has already read the stale data.

At large scale, tens of thousands of objects in a modern open-world scene, the approach breaks. The renderer cannot afford to push 50,000 transforms to the GPU every frame. The physics engine cannot rebuild or incrementally update a broadphase that large without paying a cost proportional to the scene size rather than the number of changed objects. The editor cannot poll the game thread for updates without stalling both. The sync channels that worked at 1,000 objects consume more frame time than the actual work they support.

The waste is not just bandwidth. CPU time spent marshalling data into upload buffers scales with total object count, not mutation count. A full-upload renderer pushing 100,000 transforms at 64 bytes each transfers 6.4 MB per frame whether 100 or 100,000 objects moved. The renderer has no way to know what changed because it does not own the data. It owns a copy it must refresh in its entirety or risk staleness.

Each subsystem solves this problem in isolation. Physics builds an incremental broadphase in its own memory, invisible to the renderer. The editor reads the game thread's arrays directly, coupling itself to a single consumer's layout. Audio, AI, and networking each add their own sync channels. The cost is superlinear - each new consumer multiplies the pairwise reconciliation paths.

This is the problem SceneDB was built to solve. Not incremental optimization of the sync channels. Removal of the sync channels entirely. One store. One representation of each object, CPU and GPU. One allocator, one retirement path, one spatial index. Every subsystem that needs to know where things are goes through the same store.

0.2 What SceneDB Replaces

The old pulsar_ecs crate was a conventional archetype ECS. Entities lived in CPU memory. Components were stored in dense Vec<T> columns indexed by ComponentId, itself a dense u32 assigned on first access. Queries matched archetypes by bitmask and returned pointers into the columns. Archetype migration moved entities between storage arrays when components were added or removed.

It was fast for what it was. Spawn throughput hit 560 million entities per second on the empty archetype. Query iteration ran at 84 million entities per second. Archetype migration ran faster than the original baseline after the merge-insert and get_raw optimizations landed. The thread_local! component ID cache avoided TypeId hashing. The bitmask pre-filter let queries skip non-matching archetypes without touching any column storage. The swap_remove slot reuse eliminated tombstones and compaction passes.

But it had a hard ceiling. The storage was CPU-only. Every component was a Rust struct in host memory. The renderer had no direct access to the data. It received a copy transformed into its own representation through a dedicated sync path. The game thread mutated transforms in the ECS. The renderer then queried the ECS for every entity with transform and mesh components, copied the data into its own GPU staging buffers, and uploaded the full buffer to the GPU. Every frame, every entity, full upload. No mechanism existed to track what changed between frames.

The ECS owned the data on the CPU. The renderer owned a copy on the GPU. The bridge between them was a full dump every 16 milliseconds. The renderer's copy had no relationship to the ECS's storage layout, so there was no shared indexing. A handle in the ECS was a u32 plus a generation counter. A handle in the renderer was a different allocation, a different namespace, a different lifetime.

None of this is a failure of pulsar_ecs. The crate delivered fast archetype iteration with minimal overhead. The limitation was architectural, not a gap in implementation quality. An ECS with CPU-only storage and a separate renderer cannot escape the full-upload cost, because neither system has the information to know what changed. The ECS knows which entities were modified but has no GPU awareness. The renderer has GPU access but no visibility into the ECS's mutation history. The data is split across two address spaces, owned by two different systems, with no shared notion of "what changed" crossing the boundary.

SceneDB 2.0 is not an ECS with GPU upload bolted on. That approach requires the renderer to diff the previous frame's transforms against the current frame's, storing a second CPU copy just to compute the delta. Or it requires the ECS to maintain a dirty flag per entry that the renderer polls, coupling the renderer to the ECS's internal tracking while still requiring a full iteration to collect the dirty set. Both paths add complexity without resolving the fundamental issue: the data lives in one address space and is consumed in another, and they are owned by different systems.

SceneDB 2.0 replaces both with a single shared index space and byte-identical CPU/GPU storage layouts. The old ECS allocated GPU data as a separate concern with no shared layout. The renderer defined its own transform buffer format, its own mesh metadata, its own material data. The sync code converted between two independently designed representations every frame. SceneDB 2.0 specifies both sides as a single byte-identical contract. The mesh metadata struct is 72 bytes on the CPU and 72 bytes on the GPU, with the same field offsets, the same alignment, the same padding. The upload is a memcpy into a layout that is guaranteed identical to the source layout.

The const _ assertion is the layout lock. If a field is added, reordered, or retyped and the total stops being 72 bytes, the crate stops compiling. A companion test reflects the WGSL declaration through naga and asserts the same size and all eighteen member offsets against the Rust side, so the two declarations cannot drift apart silently in either direction.

The pulsar_ecs modules remain in the pulsar_scenedb crate as a reference implementation and migration bridge. The inheritance is structural. The new Handle type, the HandleRegistry allocator, and the Page layout all share DNA with the old code. But the architecture is not an iteration. It is a replacement.

0.3 The Ownership Law

A single rule determines every architectural decision that follows:

SceneDB owns all scene data, CPU and GPU.

All persistent device buffers belong to SceneDB. Instance transforms, mesh registries, vertex and index geometry, the generation buffer, cluster and meshlet buffers. Every object's CPU and GPU representation connects through a stable slot identity. SceneDB owns the CPU-to-GPU delta-sync, the queries, and the indices that serve every consumer including the renderer hot loop.

Helio owns no scene state.

Helio owns renderer-internal persistent data. Pipelines, shaders, shadow atlases, the Hi-Z pyramid, framebuffers, render targets, draw-command and task payload scratch buffers, and every other GPU resource the renderer needs between frames. This includes per-frame transient allocations and long-lived structures like shadow atlas textures. What Helio does not own is the authoritative scene object data. Transforms, mesh registries, generation buffers, and slot mirrors belong to SceneDB. Helio binds SceneDB-owned buffers and runs passes over them. The scene state lives in one place.

The dependency direction is enforced at the build level. pulsar_scenedb has no renderer dependency, and its GPU layer lives behind a feature gate that is off by default - default = [], so a bare cargo build compiles the graphics-free core and nothing else. Helio depends on pulsar_scenedb with features = ["gpu"], never the reverse. Reversing the arrow would recreate the legacy push-model in which the renderer holds a copy that must be reconciled every frame.

The GPU device and queue are an engine-level context, not a renderer resource. SceneDB's GPU buffers outlive any renderer instance, so the Device and Queue sit above both SceneDB's GPU layer and Helio, shared by reference. SceneDB allocates scene buffers on that shared context. Helio binds them. Dropping Helio drops nothing that belongs to the scene.

This is not an organizational preference. It is the enabling condition for three capabilities that the legacy architecture could not deliver.

GPU-driven rendering requires resident, authoritative GPU state. The GPU culls its own visibility and emits its own draws from data that lives on the device. The CPU is out of the inner loop. This is only possible if the store owns the persistent device buffers and keeps them current. A renderer that is fed a pushed copy each frame cannot support this model, because the copy is stale the moment the GPU touches it. The renderer has already moved on to the next frame. Indirect rendering, bindless indexing, and mesh-shader-based virtual geometry all depend on GPU-resident data that the GPU can trust is up to date. That trust is structural: the store owns the buffer, the store updates the buffer at known points in the frame, and the store can prove the buffer is current because it tracks every mutation that targets it.

Safe generation-based slot retirement across the device boundary. A slot may be recycled only after the GPU has finished consuming it. The owner of the slot allocator and the owner of the GPU buffer must be the same system. If the renderer owned the GPU buffer and the ECS owned the slot allocator, a slot could be recycled and its generation bumped while the GPU still holds a reference to the old data in its command buffer. The result is a use-after-free that corrupts the rendering output nondeterministically and cannot be reproduced in a debugger because it depends on GPU scheduling timing.

SceneDB owning both makes retirement one coherent operation. The sequence is enforced by the hardware timeline semaphore. When a slot is marked for deletion, it enters a deferred eviction queue tagged with the current submission serial. The CPU submits the command buffer and the timeline semaphore signals its completion. Only when that signal arrives does the retirement process: the generation bumps, the new generation value is written to the VRAM validation buffer, and the slot returns to the free pool.

No frame counter arithmetic. No heuristic estimate of how far behind the GPU is. The hardware signal is the only signal. A frame-counter-based approach would recycle the slot after, say, three frames. Under normal pacing this works. Under a stutter where the GPU falls six frames behind, the slot is recycled while the GPU still holds a reference. Timeline semaphore retirement eliminates this class of bug by construction.

The VRAM generation buffer is read by the GPU culling shader on every draw command emission. Before writing a draw record, the shader validates that the handle's stored generation matches the VRAM-side generation for that slot. A mismatch means the handle is stale and the shader drops the command silently. This generation check runs on every GPU cull pass and requires zero CPU involvement.

A stateless, swappable renderer. Because Helio owns no scene state, it can be torn down and rebuilt without losing the scene. Drop the entire Helio instance. All pipelines. All shaders. The Hi-Z pyramid. The framebuffers. The bind groups. Then construct a fresh Helio bound to the same SceneDB.

The scene renders identically. Zero scene-data reload. No disk read. No CPU re-marshal. No re-upload of any scene buffer. The wgpu device survives the teardown because it is not Helio's to drop. Every scene SSBO survives because SceneDB allocated them and SceneDB still holds a reference. The only work performed on rebuild is recreation of Helio's derived resources: pipelines, Hi-Z, command scratch.

The same property enables multi-view rendering without per-view copies. Shadow cascades, reflection probes, stereo pairs. Each view runs against the same SceneDB buffers simultaneously. Each view writes into its own indirect command buffer (allocated by Helio from its transient scratch pool), but the scene data they all read from is the same single allocation. No per-view transform buffer. No per-view mesh registry. The renderer creates multiple command-generation passes over the same storage.

And it enables renderer replacement. A headless offscreen renderer for automation tests binds the same SceneDB buffers. A debug wireframe renderer binds the same SceneDB buffers. A ray-tracing backend would bind the same SceneDB buffers. The scene never moves. The store does not know which backend is consuming its data, because the dependency arrow points only one way. A new backend can be added without changing SceneDB or duplicating scene data.

The Ownership Law has its skeptics in practice. The question comes up: what about material data? Material parameters feel like scene state, but they are updated rarely and are often authored in the editor. The spec assigns material registry rows to SceneDB ownership for the same reason as transforms. A material row is 64 bytes in the persistent SSBO. SceneDB owns the CPU-side material registry, delta-syncs changes to the GPU buffer, and the GPU culling and rendering passes read it by material index. If Helio owned the material data, it would need to maintain a copy that could diverge from the editor's copy, and the reconciliation logic would recreate the exact problem SceneDB was built to remove.

What about draw commands? Draw commands are transient per-frame data. They are generated by the GPU culling pass, consumed by the GPU raster pass, and discarded. Helio owns the scratch buffer they are written into. SceneDB never touches them. The line between "scene state" and "derived data" is drawn at the boundary of cross-frame persistence. If it persists beyond a frame and represents something about the scene, SceneDB owns it. If it is computed from scene state and discarded at the end of the frame, Helio owns it.

This is the architecture that SceneDB 2.0 builds on.

Part 1: Storage Primitives

Before anything else in SceneDB 2.0 can work, there has to be a place to put bytes. A way to name what lives there, a way to find it again, a way to know when it stops being valid, and a way to pack enough data into cache-friendly contiguous memory that the SIMD scan engine can process at the rate the frame needs.

Every layer above these primitives treats them as axioms. The GPU-resident store, the phase machine, the spatial query pipeline, the streaming grid. If a handle resolves incorrectly or a page has the wrong column offset, nothing above it can be trusted.

The design answers one question first: what is the smallest possible shared vocabulary between a CPU core writing a transform and a GPU wavefront reading it, such that both sides agree on which object they mean and where its data sits in memory. The answer is a 64-bit integer.

1.1 Handles: 64 bits, one index space

A Handle is a u64. Thirty-two bits name the slot. Thirty-two bits name the generation. No pointer chasing, no heap allocation, no type erasure. The same value that the CPU passes into CellStorage::row_of is the same value a shader loads from the slot-mirror SSBO to index into the transform buffer. One index space, both sides.

Generations solve the stale-handle problem. Freeing a slot bumps its generation by one. The CPU-side row_of and the GPU-side validation buffer both compare the handle's generation against the live value. On mismatch the access is rejected before any data is read.

Generation zero is permanently reserved. Handle::INVALID is Handle(0). Active generations start at one. A handle reaching u32::MAX on free is permanently retired - no wraparound, no aliasing.

On the CPU a handle resolves in two O(1) array reads. The slot_to_row table returns a row offset into the SoA page columns. The slot index is stable for the allocation lifetime. Compaction moves rows underneath, updating only the slot_to_row entry. The handle itself is immutable from allocation.

On the GPU the slot mirror serves the same purpose. The shader extracts the slot index from the handle, reads the generation from the VRAM validation buffer, and compares. handle.bits() exposes the raw u64 for uniform upload with no struct padding or byte-order concerns.

1.2 SoA pages and the page allocator

The page is the atomic storage unit. One contiguous heap allocation, 64-byte aligned, holding every column of a cell's data in SoA layout. PageLayout describes where each column starts, how wide each element is, and how many rows the page can hold.

Construction takes a slice of ColumnDesc values and a capacity. Each column starts at a 64-byte boundary. The total stride across all columns is capped at 128 bytes per element, enforced at construction time. Column zero is always the slot ID column, declared implicitly by CellStorage before any user columns. User columns start at index 1 in the physical page but are addressed by their own zero-based user-column index space. The slot ID column stores the u32 slot index that the GPU-side slot mirror reads during compaction to keep the slot-to-row mapping coherent.

The page capacity is bounded at 1024. The recommended default is 256. The stride budget across all columns (the sum of element sizes for one row) is bounded at 128 bytes. These are hard ceilings, validated at layout construction time.

At 128 bytes per element and 256 elements, one page of user data occupies 32 KB. Sequential access patterns fit in L1 cache on most modern x86 cores. At the maximum 1024 elements the page is 128 KB, which still lands in L2. The old 256-byte stride allowance made it possible to construct layouts that blew past L1 on every scan. The tighter ceiling forces column separation. A cell type that needs more than 128 bytes of data per row must split into multiple parallel cell types, which is the correct architectural outcome.

The page allocation itself uses alloc_zeroed with a 64-byte alignment layout. Every byte in the allocation is zero. The Pod trait marks types for which all-zero bytes are a valid representation, so column slices of Pod types can be handed out over the zeroed memory without per-element initialization.

The [f32; 16] impl covers the 64-byte mat4 transform column. This keeps the transform column in the graphics-free core so that SpatialCell does not depend on any GPU feature flag.

That array is the column-major flattening: array[4 * col + row] = M[row][col]. This is exactly what a column-major math library's to_cols_array() produces and what WGSL's mat4x4<f32> expects when the buffer is read as one, so the shader applies m * vec4(local, 1.0) directly with no transpose.

The PageLayout builder can fail in three ways. A capacity outside the 1..=1024 range returns LayoutError::BadCapacity. A combined element stride over 128 bytes returns LayoutError::StrideExceeded. A column whose alignment exceeds the 64-byte column boundary returns LayoutError::AlignmentExceeded. The third case is a belt-and-suspenders guard: no element type in the engine needs 128-byte alignment, but if one ever appears, the layout computation rejects it rather than silently producing misaligned access.

The next_multiple helper rounds the cursor up to the next 64-byte boundary. It uses div_ceil followed by checked_mul to catch overflow.

The total allocation size is the final cursor position after all columns are laid out, rounded up to 64 bytes. The cursor starts at zero and the first column's alignment round-up is a no-op, so column zero always begins at offset 0 and never pays padding. A page with a single u32 column at capacity 256 allocates 4 * 256 = 1024 bytes, already a multiple of 64. A page with a full 128-byte stride at capacity 1024 allocates 128 * 1024 = 131072 bytes, plus column-alignment padding at each column start after the first. The padding is the price of cache-line-aligned column access. Every column starts at a 64-byte boundary, so no column's first element shares a cache line with the previous column's last element.

The Page stores its allocation layout alongside the data pointer so that Drop can deallocate correctly. The alloc_layout is computed once in new and reused in the Drop::drop implementation. No separate destructor metadata is needed.

The Send and Sync impls on Page are safe because the page owns its allocation exclusively. All access goes through &self or &mut self on the containing CellStorage, so Rust's borrow rules prevent aliasing. A Page moved between threads between frames is fine. A Page accessed from two threads simultaneously is caught by the borrow checker before it compiles.

Typed column access on Page works through column_slice::<T>(col) and column_slice_mut::<T>(col). Each call checks that the element size in the column descriptor matches size_of::<T>(). A mismatch panics at runtime. The TypeToken layer in section 1.6 makes this check statically safe for typed access, but the runtime guard catches mis-typed positional access.

The slice length returned is capacity, not len. Dead rows past the compaction frontier are still part of the allocation. They just contain stale data. Callers filter through the liveness mask before interpreting a specific row's value. This avoids re-slicing every column every time a row is freed.

Raw pointer access via column_ptr and column_ptr_mut is available for the SIMD scan engine and for the byte-wise swap_rows operation in the compaction path. Both bypass the type check. The read-only column_ptr is pub; the mutable column_ptr_mut is pub(crate), so nothing outside the crate can hand itself a writable alias into a column.

1.3 CellStorage: rows, columns, and cell types

CellStorage wires the page, the liveness mask, the handle registry, and the token-to-column index map into a single object. It is the public API for allocating, freeing, and dereferencing elements.

Not every column element can be Pod. A column whose type owns a heap allocation, or has a Drop impl, cannot be handed out over zeroed memory. Those live outside the SoA page allocation in a GenericColumn<T>: a Vec<MaybeUninit<T>> paired with an initialization bitmap, one bit per slot, tracking which entries hold a valid T. The page carries a parallel vec of type-erased Box<dyn GenericColumnAny> handles so push_row, pop_row, and swap stay in lockstep with the Pod columns without knowing the concrete type.

Generic columns are not subject to the 128-byte stride budget, because they are not part of the contiguous allocation the budget exists to protect. They also never cross the device boundary. The GPU mirror only ever reads Pod columns.

Construction takes a list of user column descriptors and a capacity. The implicit slot ID column is prepended. The page layout is computed, the page is allocated, and the liveness mask and registry are initialized empty.

A second constructor, from_cell_type, takes a RegisteredCellType that carries token-to-column mappings. This is the preferred path for typed call sites. It extracts the user column descriptors from the cell type, builds the storage, and populates the token-to-column-index map from the cell type's ordered token list.

The register_token_column escape hatch exists for cell compositions where the token-keyed map cannot express the layout directly. SpatialCell carries six f32 bounding-box columns and one [f32; 16] transform column. Six same-type f32 columns cannot be distinguished by token alone. The token only identifies f32, not which of the six bounds axes it refers to. The positional access path handles the bounds columns for spatial queries, and register_token_column wires the transform column and the instance-info column to their tokens.

The escape hatch carries a documented aliasing hazard. It registers a token-to-column mapping with a size assertion but no type-identity check beyond byte size. If two distinct Pod types share the same byte size (a 64-byte struct and [f32; 16], for example), a wrong-column registration passes the size check and silently reinterprets bytes. Today's only call site is self-consistent by construction. The hazard is documented, deferred, and has a narrow blast radius.

alloc pushes a new row onto the page. It allocates a fresh handle from the registry, writes the handle's slot index into the slot ID column so that compaction can redirect the mapping later, marks the row live in the liveness mask, and returns the handle. If the page is full, push_row returns None, and the alloc returns None.

free marks the row dead in the liveness mask and frees the slot in the registry. Physical removal of the row's data is deferred to the frame-boundary compaction pass. The handle becomes immediately unresolvable. registry.free nulls the slot-to-row entry, but the row's bytes in the page stay intact until compaction overwrites them.

Resolving a handle to a row offset goes through the registry's generation check.

The registry validates that the handle's generation matches the live generation for that slot and that the slot-to-row entry is not null. If either check fails, none is returned. This means a freed handle, a handle that never existed, and a handle with a stale generation all produce the same result: no row.

Compaction is swap-and-pop. Dead rows are identified by scanning the liveness mask from the front. For each dead row found, the trailing live rows are examined. If the tail of the page is dead, rows are popped directly. If a live row exists past the dead row, the live row is swapped into the dead row's position column by column, the slot-to-row mapping is updated, and the tail is popped.

The on_move callback reports every (from_row, to_row) move. The GPU layer uses this to mark destination rows dirty in its delta-sync mask. Without the callback, a compaction move would silently leave the GPU copy of the moved row stale at its old location.

The pins bitmask adds a deferred-retirement window. A row can be marked dead and pinned simultaneously. It is excluded from compaction even though liveness considers it dead. The pin-by-serial retirement path (M2a 5) uses this to keep a row physically in place while the GPU still references it through a harvested index array. Once the timeline semaphore confirms completion, the pin is cleared and the next compaction pass reclaims the row.

mark_pending_retire begins the deferred retirement. It sets the row dead in the liveness mask and sets the pin bit. The registry is not touched, so the handle still resolves to the row during the in-flight window. The returned PendingRetire carries the slot, the row, and the next generation value so the caller can write it to the VRAM validation buffer before commit_retire runs.

commit_retire completes the cycle after the GPU submission completes. It unpins the row and runs the registry tail: generation bump and slot pooling. The caller must have written pending.next_gen to the VRAM validation buffer first, or the GPU may validate against a stale generation.

swap_rows performs a byte-wise copy of every column element between two rows. It iterates over all physical columns (the slot ID column plus every user column) and calls swap_nonoverlapping on the element-sized byte spans.

The element size is read from the column descriptor, not inferred from a type parameter. This is the same size that the layout builder used to compute column offsets. The swap touches every byte of both rows and leaves no half-moved state visible, because compaction runs at the frame boundary with no concurrent readers.

The generic-column arm has a subtlety the Pod arm does not. Swapping two MaybeUninit<T> slots must also swap their initialization bits, or the bitmap stops describing the data it indexes - a slot marked initialized that holds uninitialized memory is a assume_init waiting to happen. The original implementation swapped the data and left the bits behind. That desync is what the GenericColStress workload in the stress TUI was built to catch, and it took thousands of iterations of concurrent swap pressure to surface.

Two convenience accessors bridge the storage layer to external callers. live_count returns the number of rows marked alive in the liveness mask. rows_in_use returns the physical row count before compaction: live rows plus not-yet-compacted dead rows.

1.4 LivenessMask: bit-level row state tracking

The liveness mask tracks which rows are alive and which are dead. One bit per row, packed into a Vec<u64>. The nth row's bit lives in word n / 64 at position n % 64.

AtomicU64 rather than plain u64 because the simulation phase may mutate the mask from one thread while the harvest phase reads it from another. The atomic operations use Relaxed ordering. Correct visibility between phases is guaranteed by the layer 2 phase machine, which emits a Release fence at the end of the simulation phase and an Acquire fence at the start of the harvest phase. The fences are owned by pulsar_scenedb::gpu::phase. Any caller that drives a frame through that phase machine gets correct visibility for free.

The dead_rows iterator scans the mask and yields every dead row index in a given range. The compaction pass uses this as its work list.

This is a scalar iterator, and compaction is a scalar pass. There is no SIMD compaction path. The vectorized kernels in simd.rs are all on the query side (AABB scan, frustum scan, token compression), where the work is data-parallel over hundreds of thousands of rows per frame. Compaction is not that shape: it touches only as many rows as there are holes, and each move is a scattered byte-wise row swap plus a slot-table write, so there is nothing for a wide register to do. A bit-scan over the mask words would speed up finding the next hole, but finding holes is not where the time goes.

live_count sums the popcount of every word. This is a harvest-phase operation and must not run concurrently with writers.

The mask capacity is always rounded up to a multiple of 64. A page of 256 rows needs 4 words. A page of 1024 rows needs 16 words. The mask size in bytes is capacity / 8, so a 1024-row mask occupies 128 bytes (two cache lines). The compaction scan reads the mask entirely into L1 before touching any column data.

The memory ordering contract deserves emphasis because getting it wrong produces a silent correctness bug that appears only on specific hardware. Every set_live and set_dead call uses Ordering::Relaxed. The atomic operation itself is atomic (no tearing of the 64-bit word), but nothing prevents a harvest-phase reader on another core from observing a stale word value. Correct visibility depends on a Release fence emitted by SimulateB::end after all simulation-phase writes complete, paired with an Acquire fence emitted by HarvestPhase::end and BoundaryPhase::retire before any harvest-boundary code reads the mask. The fences are owned by the phase machine in pulsar_scenedb::gpu::phase. Any caller that drives a frame through that machine gets correct visibility automatically. A caller that reads or writes a LivenessMask outside the phase machine (there are none in the crate today) must provide its own synchronization or risk observing stale bits.

The words() method exposes the raw AtomicU64 slice for GPU upload. The phase machine reads every word and packs the bits into a staging buffer sized to the cell's capacity. The GPU-side liveness texture or SSBO word array uses the same bit layout so a word-for-word copy is valid. No format conversion occurs between the CPU mask and the GPU liveness buffer.

The choice of a dense bitmask over a Vec<bool> or a HashSet<u32> follows from the scan-heavy access pattern. Vec<bool> uses one byte per row (eight times the memory bandwidth of a bitmask). HashSet<u32> adds heap allocation per entry, nondeterministic iteration, and no direct GPU upload path. The bitmask is compact, cache-friendly, deterministic in iteration order, and directly uploadable. A 1024-row mask fits in 128 bytes. Two cache lines. The compaction scan reads both lines once and has the complete liveness state for the page.

1.5 HandleRegistry: slot allocation and generation management

The registry owns the slot table. Every handle resolves through it. The registry is the authority on which slots are live, which row each live slot occupies, and what generation each slot is at.

generations is indexed by slot ID. slot_to_row is also indexed by slot ID. free is a LIFO free-list of slot IDs that can be recycled. retired_count tracks how many slots have hit u32::MAX and been permanently removed.

Allocation checks the free-list first. If a recycled slot exists, its stored generation is the generation it was at when freed. That is the generation the new handle will carry. If no free slot exists, a new slot is appended to the generations and slot_to_row arrays, starting at generation 1.

The generation value in the free-list entry is the generation after the bump. When a slot is freed, its generation increments by one. The next allocation of that slot returns a handle with the bumped generation. This means a stale handle holding the pre-bump generation will not match.

The is_live check guards against double-free and stale-handle free attempts. It verifies that the slot index is in range, that the stored generation matches the handle's generation, and that the slot-to-row entry is not null. After the check passes, the slot-to-row entry is nulled, the generation is incremented, and the slot is either pushed to the free-list or permanently retired if the next generation would overflow.

Resolution is a generation check followed by a table lookup. The generation check is a single u32 comparison. The table lookup is a single Vec index. The entire resolution path is two loads and a branch.

set_row is the compaction callback. When swap-and-pop moves a live element into a dead row's position, the slot-to-row entry for that element's slot is updated to point at the new row. The handle never changes. Only the internal indirection.

The registry grows dynamically. New slots are appended when the free-list is empty. There is no preallocation requirement. A cell with 256 elements will have at most 256 slots in its registry. The generations and slot_to_row arrays are resized in lockstep.

The is_live function validates a handle in three steps. First it checks handle.is_valid(). This verifies generation is non-zero. Then it checks the slot index is within the allocated range of the generations array. Then it compares the handle's stored generation against the registry's live generation for that slot and checks that the slot-to-row entry is not NULL_ROW.

NULL_ROW is 0xFFFF_FFFF, which is never a valid row index. A freed slot has its slot_to_row entry set to NULL_ROW, making it impossible for a stale handle to resolve even if its generation somehow matched. The NULL_ROW value is the same sentinel used in the GPU slot mirror and in the spatial query token output (section 8.3 of the spec). One sentinel, same meaning everywhere.

set_row updates the slot-to-row indirection after a compaction swap. The method carries debug assertions that the slot is within range and that the slot is currently live. It is not freed and not yet allocated.

The generations() method exposes the generation array for VRAM upload. The GPU validation buffer is a direct mirror of this array, updated every time a slot's generation changes. The retired_count field tracks how many slots have been permanently retired. It is a monotonically increasing counter. Monitoring this counter over the lifetime of a scene provides a diagnostic signal: a rapidly climbing retired count indicates a slot leak or an allocate-free cycle that is burning through generation values faster than expected.

The commit_retire method is the deferred retirement path for the pin-by-serial mechanism. It performs the same generation bump and slot pooling as free but assumes the slot has already been validated by mark_pending_retire. This split exists because the pin window separates the logical free from the physical slot recycling. The slot cannot be pooled until the GPU timeline semaphore confirms that the in-flight submission has completed. After commit_retire, the slot is available for reallocation and the new generation has been written to both the host registry and the VRAM validation buffer.

1.6 Type-token-keyed column access

Positional column access by index works but creates a fragile coupling. If the column layout changes, a new column inserted or the order rearranged, every call site that addresses columns by numeric index must be updated. SceneDB 2.0 solves this with TypeToken: a compile-time identifier that binds a Rust type to a column descriptor and a dense ComponentId.

TypeToken::of::<T>() is cheap but not const. On first call per type per process it allocates a dense ComponentId from the crate's sequential id allocator, which means touching a thread-local cache and, on a cold miss, a global mutex. Every subsequent call returns the same id. The ComponentId is the same id-space used by the ECS's component_id::<T>() function, so a type that appears both as an ECS component and as a SceneDB column element gets the same identifier in both systems. No manual mapping table between the two is needed.

The token carries the ColumnDesc (element size and alignment), derived from size_of::<T>() and align_of::<T>(). The desc() method returns the descriptor for building page layouts. The id() method returns the dense ComponentId for token-to-column index lookups. The type_info() method returns optional reflection metadata.

This bridges to pulsar_reflection. A column element type registered with #[derive(Reflectable)] or #[pulsar_type] gets a RuntimeTypeInfo entry in the global type registry, which type_info() retrieves by TypeId. Bare Pod types without reflection registration return None. They work as columns and carry data across the GPU boundary correctly. They just have no serialization schema or editor metadata attached.

The Hash impl on TypeToken uses only the ComponentId for hashing. The ComponentId is an injective function of the type. It is allocated once per type per process, so hashing it alone is sufficient and consistent with the derived Eq.

A CellType declares the ordered set of token types that compose a cell's columns. The fluent builder validates holistically that the combined stride (slot-ID column plus all user columns) stays within the 128-byte budget and that no token is declared twice.

The stride check is holistic, counting the implicit 4-byte slot ID column plus every Pod user column, so splitting a layout into many small columns cannot be used to sneak past the 128-byte budget. Generic columns are exempt - they live outside the SoA allocation, so they cost nothing in stride. The duplicate check prevents the same token type from occupying two columns. This is why SpatialCell uses positional column access for its six f32 bounds columns rather than declaring them through CellType.

CellStorage::from_cell_type consumes a RegisteredCellType and builds the token-to-column-index map. column_for::<T>() resolves the type token at runtime via a linear scan over the token-index map. The map has one entry per column, typically 1-16 entries. A linear scan beats a hash table at those sizes.

The column descriptor stored in the TypeToken never references a concrete Rust type. It stores size and align as integers. The column layout is determined by byte sizes alone. Two types with the same size and alignment produce identical layouts. Type safety comes from the token's ComponentId (the dense id allocated per type), not from storing TypeId in the page metadata. The page itself has no knowledge of which Rust types its columns hold. It only knows how many bytes each column element occupies and where the column starts.

The register_token_column method is an escape hatch for cell types like SpatialCell that carry multiple same-type columns (six f32 bounds columns) which the token-keyed map cannot distinguish. It registers a token-to-column mapping for a specific user column index by type identity. This is a discipline-guarded API. The caller must guarantee that the column at the given index actually holds elements of type T and that no other registration conflicts with it.

The token also bridges to pulsar_reflection. TypeToken::type_info() returns Option<&'static RuntimeTypeInfo>, linking the column element type to its reflection metadata for serialization and editor inspection. Bare Pod types without reflection registration return None. They work as columns, they just carry no metadata.

The storage layer described here (handles, pages, liveness masks, registries, and type tokens) forms the foundation that every other SceneDB 2.0 subsystem sits on. Part 2 (below) covers how these primitives compose into the ECS layer: worlds, archetypes, component stores, and the query pipeline that ties them together.

Part 2: The Archetype ECS Layer

Part 1 walked through the storage primitives. Pages, liveness masks, handle registries, and the compaction pipeline. Those building blocks handle memory layout and slot management. But they do not know about components. They do not know about queries. They do not know about systems.

An archetype ECS on top of the slot-indexed storage. Worlds with typed component columns. Queries that match archetypes by bitmask and fetch rows through direct pointer access. A scheduler that runs systems in sequence, each receiving &mut World and a frame timestamp.

The crate that implements this is pulsar_scenedb. The ECS layer lives alongside the GPU storage layer in the same crate. Both share the same Handle format and the same component identity system. But the ECS layer works on any platform. No GPU required.

The design follows the archetype pattern popularized by Flecs and Bevy. Entities are grouped by their component set. Adding or removing a component moves the entity to a new group. Queries iterate only the groups that match their filter. Component data is stored in contiguous slices within each group, so iteration is a linear walk over memory.

What sets this implementation apart is the erased column trait, the precomputed bitmask filtering, and the merge-insert optimization for archetype key construction. Each of these has a measurable effect on benchmark throughput. The numbers appear throughout this section.

2.1 Archetypes and the World

World is the top-level store. It owns four things:

Entity slots map a u32 index to a generation counter, an archetype ID, and a row number within that archetype. The generation counter increments each time a slot is recycled. A stale Entity handle is detectable by comparing its stored generation against the slot's current generation. No tombstone scanning, no weak-reference table.

An Entity handle is a packed u64. The lower 32 bits are the slot index. The upper 32 bits are the generation. Entity::DANGLING is u64::MAX, which can never collide with a valid entity because slot indices are bounded by the length of the slot vec.

No heap allocation for handles. No reference counting. Entity is Copy. Systems pass entities around by value.

Free slots track indices that were released by despawn. When spawn runs, it pops from the free list before extending the slot vec. This keeps the slot vec compact and avoids unbounded growth in workloads that churn entities. A slot whose generation wraps past u32::MAX is theoretically aliased with a fresh handle from the same slot's first allocation. In practice that takes 4 billion spawn-despawn cycles on the same slot, which exceeds any known game workload.

Archetypes are the structural core of the ECS. Each archetype stores entities that share the exact same set of component types. An archetype with Pos and Vel contains every entity that has Pos and Vel and nothing else. An archetype with Pos, Vel, and Health contains every entity that has all three. The component set is the archetype's identity.

ArchetypeKey represents that identity as a sorted, deduplicated Vec<ComponentId>. Two archetypes with the same key have the same column layout. World deduplicates them through archetype_index, a hashmap from ArchetypeKey to ArchetypeId. When insert needs a destination archetype, it calls get_or_create_archetype, which checks the index first and only allocates a new archetype for a novel key.

The first archetype is always the empty archetype, ArchetypeId::EMPTY (ID 0). Newly spawned entities land here. No components, one entity per row. The empty archetype's column vec is empty and its key is ArchetypeKey(vec![]).

Each archetype carries a u64 bitmask. Bit i is set when component ID i+1 is present in the archetype's column set. This mask is the first line of defense during queries. An archetype with Pos (CID 1) and Vel (CID 2) has mask 0b110. A query for (&Pos, &Health) can check mask & 0b101 == 0b101 in a single instruction and skip the archetype if the bits do not match. No hash lookups, no linear scans of the key vec.

The mask is computed once at archetype construction. It covers the first 64 component IDs. Beyond ID 64 the mask is zero for that bit and the check falls through to the column vec. The 64-component limit is a practical constraint driven by the u64 type width. No project in this engine uses more than 32 component types, so the cutoff is never hit.

The has_columns method uses this mask as a fast path:

The column vec is indexed directly by ComponentId.0 as usize. A precomputed active_cids field stores the subset of populated columns, so migration routines iterate only active entries. The archetype index deduplicates automatically - each new component combination creates a new archetype, and the hashmap lookup is a single probe.

2.2 Component storage and column traits

Every type that is Any + Send + Sync + 'static is automatically a component. No derive macro, no manual registration.

Each component type gets a ComponentId, assigned sequentially from 1 on first access. The allocation uses a thread-local cache for the hot path and a global Mutex-guarded registry for cold starts.

A linear scan over the thread-local cache covers the common case. The cache is a plain Vec<(TypeId, ComponentId)> with an expected size under 32 entries. Linear scan over 32 entries is faster than a hashmap lookup in the single-digit-nanosecond range.

The global Mutex is acquired once per type per thread. The registry() returns a OnceLock<Mutex<Vec<TypeId>>> that is initialized on first access. The OnceLock ensures the Mutex allocation happens exactly once.

A prior implementation used a OnceLock per monomorphisation. This triggered linker ICF (identical code folding) on macOS. The linker merged the OnceLock statics across different T because the monomorphised instances were bit-identical. The result was multiple component types sharing the same ComponentId. Debugging that took two days. The current approach uses a single global registry and a thread-local cache, which avoids the ICF issue entirely because there is only one static.

Component data lives in Column<T>, a thin wrapper around Vec<T>:

Each archetype stores one Column<T> per component type in its archetype key. All columns in an archetype have the same length. Row i in the entity vec corresponds to row i in every column. This is the archetype ECS invariant: all parallel arrays stay in lockstep. The assert_archetype_consistency method verifies this at debug-build debug points:

The ErasedColumn trait provides type-erased access to columns. It is pub(crate), which seals the trait against external implementation. The sealing matters for soundness: the query path relies on ErasedColumn for cross-component iteration, and an external implementation could violate the memory layout contracts.

get_raw and get_raw_mut return a raw pointer to the element at row, computed as data.as_ptr().add(row). No downcast, no TypeId comparison. The caller already knows the concrete type from the generic parameter and casts the pointer back.

swap_remove_erased is the migration path. It removes the value at row using Vec::swap_remove, boxes the result, and leaks the box to produce a stable *mut (). The caller pushes this pointer into a destination column via push_erased or drops it via drop_erased.

The boxing-and-leaking pattern avoids a second copy for types that are large or have expensive move constructors. swap_remove already moves the element out of the Vec. Boxing it and leaking produces a raw pointer that the destination column can unbox and push. The cost is one heap allocation per migrated component, which is bounded by the entity's component count. A component with a small Copy type like Pos pays the allocation overhead but the allocation is amortized across the migration of all components on the entity.

new_empty creates a fresh Box<dyn ErasedColumn> for the same concrete type. The migration routines call this when the destination archetype does not yet have a column for a given component ID. It avoids the generic parameter because new_empty is called through the trait object.

No external crate can implement ErasedColumn. No external crate can create a Column<T> that does not conform to the memory layout. The sealed trait plus the pub(crate) visibility on the column vec's internals makes the type-erased access sound within the crate and impossible to misuse from outside.

The as_any and as_any_mut methods on ErasedColumn exist for the get and get_mut paths on World. These paths do a single entity lookup by handle and access one component at a time. The downcast cost is negligible at single-entity granularity. The query path never uses as_any.

2.3 The spawn hot path

spawn() is the most frequent operation in the ECS. Every entity starts here. The implementation has two branches.

When a free slot is available from a prior despawn:

When no slots are free, the entity gets a new index at the end of the slot vec. The generation starts at 0. When slots are recycled, the generation wraps on overflow.

The entity handle is constructed from the index and generation:

The entity is pushed into the empty archetype's entity vec. The slot's row field tracks its position. The handle is returned to the caller.

reserve_entities pre-sizes the slot vec and the empty archetype's entity vec. Calling it before a batch spawn loop avoids repeated capacity-doubling reallocations.

The benchmark numbers show the effect. Without reservation, each spawn may trigger a resize that reallocates the backing buffer and copies every existing entity slot. With reservation, the batch loop runs against preallocated capacity and the overhead vanishes.

At 10,000 entities the empty spawn path runs at 560 million entities per second. That is 1.79 nanoseconds per entity. The operation is essentially a slot allocation, a generation increment, and a push into the empty archetype's entity vec. No heap allocation beyond the pre-reserved capacity.

At 100 entities the throughput is lower (359 Melem/s) because the reserve call and the first allocation of the slot vec dominate the runtime. At 50,000 entities the throughput stabilizes around 540 Melem/s. The Vec reallocation overhead is fully amortized.

The improvements over the baseline are 20% to 51%. The largest gain is at the smallest batch size. The reserve_entities change eliminated the first resize entirely. The baseline code did not pre-reserve, so the 100-entity batch triggered Vec growth from 0 to 100 through several doublings, each requiring a copy of the existing slots.

insert is more expensive. It must migrate the entity from its current archetype to a new one that includes the new component. But it has an optimization: when the entity already has the component, the value is overwritten in place with no migration.

Updating a component on an entity that already has it is the common case. The write is a single Vec index assignment. No archetype lookup, no new allocation, no column transfer.

When the component is new to the entity, insert builds the destination archetype key, ensures the destination archetype exists, guarantees the column is present in the destination, migrates the entity's existing data, and pushes the new component value.

The destination column is guaranteed to exist before migration starts. The migration transfers the entity's existing component data. Then the new component value is pushed onto the destination column. The order matters: the entity must already be present in the destination archetype (migrate_row pushes it) before the new component value is pushed, so the column lengths stay in sync.

The with_component path includes both spawn and insert. At 10,000 entities the throughput is 24.3 million entities per second. Each entity gets one insert, which means one archetype migration and one component push. The migration overhead dominates.

Four inserts per entity means four migrations. The throughput drops to 3.35 million entities per second at 50,000 entities. Each migration copies the entity's existing components column by column. The linear cost scales with the number of components the entity already has.

The 25% improvement across all sizes in the 4-component case comes from the ArchetypeKey::with optimization. Each of the four inserts calls with once. The old implementation sorted and deduped. The new implementation does a linear merge. The savings compound.

2.4 Queries bitmask matching and pointer access

A query iterates all entities in the world that match a component pattern. The pattern is expressed as a tuple of WorldQuery implementors. world.query::<(&Pos, &Vel)>() returns an iterator over all entities that have both Pos and Vel.

The WorldQuery trait has two methods:

matches returns true when the archetype contains all components the query needs. fetch reads the component data at a given row. The fetch is marked unsafe because the caller must guarantee that matches was true and row is within the archetype's entity count.

The iterator structure is straightforward:

Two skip conditions. First, the archetype must match the query's component filter. Second, the row must be within the archetype's entity count. When both are satisfied, fetch reads the data and the iterator advances. When an archetype runs out of entities, the iterator advances to the next archetype.

The archetype scan is linear by archetypes vec index. The matches check uses a bitmask for the first 64 component IDs, falling back to a column vec lookup beyond that range.

Each fetch implementation is three pointer chases: index into the column vec, dereference the Box<dyn ErasedColumn>, and offset into the data vec. No as_any().downcast_ref(). No TypeId comparison. The &T and &mut T arms are the same shape, differing only in the constness of the pointer they hand back — here is the mutable one:

The borrow checker allows &T and &mut T in the same query tuple because each column is a separate allocation. The macro-generated tuple fetch calls each component's fetch independently. The returned tuple holds references to distinct memory regions. The alias analysis holds.

The earlier implementation used downcast_ref on every fetch call. Each downcast compared TypeId::of::<T>() against the stored TypeId in the Any impl. On an 8-tuple query that was 8 TypeId comparisons and 8 unwraps per entity. At 10,000 entities, 80,000 type checks per frame.

Removing those checks moved the 8-tuple query from a baseline of 567 µs to 525 µs. A 7.5% improvement from eliminating dynamic type dispatch on the hot path. The absolute saving is 42 µs per frame at 10,000 entities. Spread across 60 frames per second, that is 2.5 ms per second of CPU time reclaimed.

The two-component query (&Pos, &Health) runs at 84 million entities per second. The iterator skips the 10% of entities that have Vel instead of Pos. The bitmask check rejects the non-matching archetype in a single instruction before any row iteration begins. The throughput is stable across all entity counts, which indicates that the iteration is memory-bound on the column data, not bottlenecked on the archetype scan.

The () query matches every archetype. It is useful for counting total entities or for iterating without fetching data. The matches implementation returns true unconditionally. fetch is a no-op.

Tuple queries compose individual WorldQuery implementations. The macro generates matches and fetch implementations that delegate to each element:

Support goes up to 8-element tuples. The limit is arbitrary. The macro could generate up to 12 or 16, but no real query in the engine uses more than 8 component accesses in a single system. Past a certain point the marginal value of more components is noise.

The QueryIter is a single-threaded scan of archetypes. Parallel iteration is possible by splitting the archetype vec across threads, but the current scheduler does not implement it. Systems run sequentially. Future work may add a parallel query executor that partitions archetypes by entity count and assigns batches to worker threads.

2.5 Archetype migration adding and removing components

Every insert of a new component and every remove triggers an archetype migration. The entity leaves its current archetype, all existing component data is transferred to the destination archetype, and the entity's slot is updated to point at the new row.

The destination archetype key is computed using ArchetypeKey::with and ArchetypeKey::without.

with builds a new key that includes the given component type. The old implementation cloned the vector, pushed the new ID, sorted, and deduped. A full O(n log n) sort for every insert.

The new implementation checks for the ID first and returns early if it is already present. When the ID is new, it preallocates the exact capacity and merges in a single linear pass:

The merge assumes the source vec is already sorted. The loop walks the source once and inserts the new ID at the correct sorted position. No sort call. No dedup pass. The cost is one contains scan plus one allocation and one linear merge.

The old approach for reference:

The new approach avoids the sort entirely. For a component key containing N IDs, the old path allocated a clone, pushed, then paid O(N log N) for the sort plus an O(N) dedup — unconditionally, even when the component was already present. The new path pays O(N) for the contains check and, only when the component is genuinely new, another O(N) for the merge; the already-present case short-circuits to a clone. The improvement grows with the archetype key size.

without is simpler. It filters out the given ID and collects the rest:

No sorting needed. The filter pass produces a vec that is already sorted because the source is sorted.

The migration itself happens in migrate_row. The method has a specific ordering constraint: the entity must appear in the destination archetype's entity vec before any component data is transferred. This ensures that if any component transfer panics, the entity is already visible in the destination and the world is in a consistent state.

The migration copies each existing component through the erased column interface. For each column in the source archetype's active_cids:

1. swap_remove_erased extracts the value from the source column as a *mut (). The source column shrinks by one.
2. If the destination column does not exist yet, new_empty creates it. The new column is registered at the correct ComponentId index in the destination's column vec.
3. push_erased inserts the pointer's value into the destination column. The destination column grows to match the destination entity vec.

The swap_remove in the source column moves the last entity's data into the vacated row. The entity that was swapped into that position gets its slot row updated. The entity that moved out has its slot pointed at the new archetype and row.

Phase 3 handles the swapped-in entity. If the removed entity was not the last one in the source archetype, the last entity moves into the vacated row. Its slot row is updated to reflect the new position.

Phase 4 updates the migrated entity's slot. The row points at the new archetype, and the row matches the position in the destination entity vec.

migrate_row_skip follows the same pattern but skips one component ID:

The remove path uses this: the removed component's value is already extracted before migration begins. All other components follow the same transfer path.

The slot update happens last, after all data has been transferred and the source row has been vacated. If the migration panics between the entity push and the slot update, the entity exists in two archetypes simultaneously with inconsistent slot data. The debug_assertions build catches this with assert_archetype_consistency, which verifies that every archetype's column lengths match its entity count. Release builds skip the assertion.

The insert_component benchmark spawns 10,000 entities then inserts Pos on each. The migration moves each entity from the empty archetype to the Pos archetype. The with optimization saves the sort-and-dedup pass for each migration. The empty archetype key has 0 IDs. The old path cloned the empty vec, pushed one ID, sorted a 1-element vec (no-op), and deduped (no-op). The overhead was the clone and the sort call's setup. The new path short-circuits on the contains check or merges in one pass. 12% faster on the full batch.

The add_then_remove benchmark spawns 10,000 entities, inserts Pos and Health on each, then removes Health from each. Two migrations per entity: one adding Health, one removing it. The without method is already a linear filter, so the gain there is smaller. The overall 18% improvement comes from the with path in the first migration and the eliminated sort work across both migrations.

Each migration also incurs the erased column overhead. Every component on the entity is swap_removed from the source, boxed, leaked as a pointer, pushed into the destination, and unboxed. For an entity with 2 components migrating to a 3-component archetype, that is 2 heap allocations and 2 pointer pushes. The cost is proportional to the entity's current component count, not the destination size.

The remove path has an additional cost. The removed component value is extracted via swap_remove_erased before migration begins. The value is unboxed and returned to the caller as Option<T>. If the caller discards the value, the drop runs normally. If the caller stores it, no extra copy occurs.

These benchmarks were measured on an AMD Ryzen 9 9950X3D at stock clocks. The criterion configuration uses the default profiling overhead measurement and a target coefficient of variation under 5%. All measurements are wall-clock time. Each benchmark runs until the confidence interval stabilizes.

2.6 Defining components with SceneStore

A component that needs both editor properties and GPU mirroring is declared with two macros that compose cleanly, one from the engine and one from SceneDB.

The two macros own different halves of the problem and neither knows about the other.

#[engine_class(...)] is the engine's attribute macro. It registers the component with the reflection system and gives each #[property] field a getter, setter, and type info for the editor UI, along with whatever standard derives the argument list asks for (default, clone, and optionally debug, serialize, deserialize). It is what makes the component visible in the property inspector.

#[derive(SceneStore)] is SceneDB's derive. It generates HasTypeToken, Pod, SceneColumnSet, and GpuColumnSet — every field becomes a column in SceneDB storage, and each #[gpu] field additionally gets a GPU-resident buffer that the CPU writes into at the frame boundary. The #[gpu] attribute takes an optional mirror mode: DirtyTracked (the default for a bare #[gpu]) re-syncs whenever the row is marked dirty, while Once uploads a single time at registration and never again — the right choice for a field that is written at spawn and then never touched.

There is no single umbrella derive that does both. Keeping them separate is what lets a component be GPU-mirrored without being editor-visible, or editor-visible without ever touching the device.

GPU-native fields live resident on the device. The CPU side never reads them back. Updates arrive as events from the simulation phase - a transform change, a mesh swap, a material override. Each event writes the new value into the CPU-side column and marks the row dirty. At the frame boundary, sync_all coalesces the dirty marks into contiguous ranges and issues one write_buffer per range. The GPU sees the new values on the next dispatch. Zero CPU-side reads of GPU data.

The GpuColumnSet descriptor list drives this at registration time. Every #[gpu] field's type gets a SceneBuffer<T> in the store, registered through register_gpu_buffer::<T>() and keyed by the type's dense ComponentId, plus a DirtyMask at the matching key in the per-cell state. The generated write_gpu::<RigidBody>() dispatches each field to its column write and its dirty mark. At the boundary, sync_all walks that same per-cell dirty-column table, and for each entry looks up the buffer by ComponentId and the CPU bytes by the same key - one keyed lookup, three structures that cannot drift because they share the identifier. Any Pod type can be a #[gpu] field. No code outside SceneDB needs to know about the sync path.

GPU-native fields are immutable on the GPU between boundaries - the shader reads them, the CPU queues updates, and the boundary applies them. This means a #[gpu] field read in the middle of a frame reflects the previous boundary's state. Frame-level latency is the expected contract. Eventual consistency, not immediate.

3. GPU Layer

The GPU layer is where SceneDB earns its name. Everything upstream exists to feed this machine. The GPU store owns persistent device buffers that outlive any renderer instance. The phase machine enforces that mutation and read-only access never overlap. The harvest pipeline scans every live cell and produces the exact byte sequences the shaders need for indirect draw dispatch.

3.1 SceneGpuStore - the cross-device bridge

SceneGpuStore owns the persistent device buffers. Three are fixed and named, because the store itself depends on them: the slot-mirror SSBO, the generation buffer, and a per-cell metadata buffer. The mirrored data columns are not fixed. They live in a type-erased map keyed by ComponentId:

An earlier revision had transforms and instance_infos as concrete named fields. That worked exactly as long as those two were the only mirrored columns, and stopped working the moment a component wanted to mirror a third. The map generalizes it: any Pod column type registers a SceneBuffer<T> under its dense id, and the boundary sync iterates whatever is registered rather than a hardcoded pair. Transforms and InstanceInfo are still registered automatically at construction, and convenience accessors — transform_buffer(), instance_info_buffer() — still resolve them by id, so the common path reads the same as before.

Every buffer is allocated once and never reallocates.

The store splits its row space into regions. Each cell gets a disjoint slice of each buffer. Rows live in [row_base, row_base + capacity) in the transform, instance-info, and slot-mirror buffers. Slots live in [slot_base, slot_base + capacity + 64) in the generation buffer, with the 64-slot headroom absorbing retired-but-not-yet-recycled slots.

Region allocation uses size classes. A cell registered with capacity 1024 and max 16 cells gets a 1024-row slice in a 16384-row class-level reservation. The RegionPool hands out fixed-size regions from a LIFO free list. Regions freed while the GPU still holds references go to a pinned queue keyed by submission serial, draining back to the free list once drain_completed(serial) confirms the GPU is done.

register_cell allocates the row and slot regions, seeds the generation buffer from the registry, marks every occupied row dirty, and sets up per-cell shadow state for delta-minimal writes. Pool exhaustion returns Err(RegionError) - a graceful decline, not a panic.

The generation buffer is the slot-indexed SSBO mirroring HandleRegistry::generations(). Each cell's region is seeded at registration. A tail scrub zeroes the unused portion of a recycled region's generation buffer, preventing stale-generation validation against a prior tenant's data.

The gen_shadow is initialized from the registry. Each slot's shadow starts at the registry's current generation value. Tail entries start at 0. A recycled region's shadow must forget the prior tenant's values too - the shadow for every slot is set to 0 first, then the occupied prefix is overwritten from the registry.

The GPU store does not mirror every CPU column. Only columns declared as GPU-native appear in the device buffers. A SpatialCell::with_transform carries a [f32; 16] transform column and an InstanceInfo column. Both are token-registered in the page layout and picked up by register_cell. Columns without a GPU mirror stay CPU-only. No tracking overhead, no upload cost. The distinction is in the column list, not in the API.

write_transform writes the CPU transform column, marks the dirty bit, and stamps the handle's generation into the generation buffer. write_instance_info mirrors the same pattern for the cull shader's InstanceInfo column. The generation stamp lives on write_transform only - one stamping path prevents ambiguity about which column owns a slot's first stamp.

rebuild handles device-loss recovery. It constructs a fresh store from every cell's CPU-authoritative columns, bulk-writes every column into the device buffers, and clears warm-up dirty marks. No GPU-only state exists to lose. The slot mirror is bulk-filled from the slot column directly rather than waiting for the first boundary scan.

unregister_cell returns a cell's regions to their pools with a pin serial. Pending retires commit CPU-side immediately. Row and slot regions free via free_pinned(last_serial) once the serial completes. CellIds are never recycled.

3.2 Dirty tracking and delta-minimal upload

Each mirrored column holds a DirtyMask - a bitmask of which rows changed since the last sync. write_transform writes the CPU column and marks the row. sync_all iterates marked rows, coalesces adjacent marks into contiguous ranges, and issues one write_buffer per range. Zero dirty rows means zero GPU writes.

The mask is a Vec<AtomicU64> sized to the cell's row capacity. Marking a row is an atomic fetch-or of 1 << (row % 64). Relaxed ordering suffices because the phase machine's Release/Acquire fence pair provides the happens-before edge between column writes and the sync read.

sync_region on SceneBuffer<T> drives the coalescing logic. It scans every row in 0..n, tracks whether a dirty run is currently open, and flushes on the first clean row after a dirty run. Each flush issues one queue.write_buffer for the contiguous span.

The implementation is a single pass with no per-row branching beyond the dirty check. It tracks run_start: Option<u32>. On a dirty row with no run open, it opens one. On a clean row with a run open, it flushes and closes. After the loop, any remaining open run is flushed.

Each flush computes the byte range from the region base, multiplies by element stride, and calls queue.write_buffer. The returned SyncStats records ranges and total bytes for instrumentation and alloc-gate tests. A frame with no changes issues zero write_buffer calls.

A cell carries one dirty mask per mirrored column, held in a dense table indexed by ComponentId, plus one dedicated mask for the slot mirror. The column masks are marked by write calls and by compaction. The slot mask is different: it is marked only by the boundary scan, never by a write. Section 3.3 covers why that asymmetry is the whole point.

3.3 The self-healing slot mirror

The slot mirror is a SceneBuffer<u32> indexed by GPU row. Each entry holds slot_base + local_slot, the global slot ID for GPU-side handle validation. The cull shader reads slot_mirror[global_row] to get the slot, then validates generations[slot] against an expected generation.

sync_all runs a boundary scan over every occupied row. It compares a per-row shadow against the authoritative slot column. On mismatch it marks the row dirty, computes slot_base + slot_column[row], writes the result into a scratch buffer, and schedules an upload.

The shadow starts at u32::MAX for every row. Real slots are far below slot_capacity, so the first frame uploads every occupied row. After steady state only rows whose slot changed trigger a write. This catches every staleness path: write after alloc, compaction swap, alloc re-occupying a vacated row. Earlier per-event trigger designs missed cases. The alloc re-occupying a vacated row was the worst - no trigger fired because the row was never written to, yet its slot mirror entry still held the prior occupant's global slot. The boundary scan closes every path with one invariant.

3.4 The phase machine - compile-time frame ordering

Frame phases are types, not runtime values. SimulateA and SimulateB permit mutation. HarvestPhase permits reads only. BoundaryPhase runs the retire-compact-sync pipeline. The type system enforces ordering at compile time through sealed traits with zero runtime cost.

Mutation APIs like write_transform take &impl SimulateWitness. A HarvestPhase reference does not implement the trait. Calling write_transform with a harvest-phase witness is a compile error.

Each transition consumes the witness. SimulateA::end returns SimulateB. SimulateB::end returns HarvestPhase. HarvestPhase::end returns BoundaryPhase. BoundaryPhase::run consumes itself. The only way to get a fresh SimulateA is through FrameDriver::begin.

The memory ordering contract lives in the transitions. SimulateB::end emits a Release fence. HarvestPhase::end emits a paired Acquire fence. Single-threaded callers pay nothing - the fence emits no instruction on x86-64 and only orders the thread's own stores.

3.5 Frame lifecycle from end to end

A full frame traces through four phase transitions, each consuming the witness.

BoundaryPhase::run is the all-in-one path. Each stage is also exposed as a consuming transition for tests that need to observe intermediate state.

retire drains every cell's deferred-retire queue against completed submission serials. Each drained entry calls write_generation to bump the slot's VRAM generation before returning the slot to the free pool. compact runs swap-and-pop on every cell, marking moved rows in the dirty masks. The gated variant skips cells with outstanding harvest leases. sync uploads dirty rows and runs the slot-mirror boundary scan.

The internal Phase enum provides a debug-assertion safety net on top of the compile-time witness chain. It tracks Write - Retired - Compacted - Write. Calling retire_all twice in the same boundary is a debug assertion failure. The enum also catches the stale-witness hole: if a caller holds a SimulateA across a boundary and attempts a write_transform, the enum's phase check fails loud.

The pump discipline requires that every iteration ends with queue.submit(empty()) and device.poll(wait). Without this, the write_buffer pending-writes staging belt grows unbounded across iterations. The benchmarks discovered this the hard way. The original criterion measurements for region_sync_1024_dirty_rows showed private bytes exceeding 17 GB and statistics that never converged within the default sample count. The pump fixes both by reclaiming staging memory every iteration.

An important subtlety about the boundary scan's byte-volume invariance: the slot-mirror comparison reads every occupied row regardless of how many transform bytes actually changed. The O(rows) scan is a fixed per-frame cost that does not scale with mutation volume. For a 1024-row cell this is 1024 u32 comparisons and branches. On modern x86 the branch is perfectly predictable in the steady state (same rows match every frame), so the cost stabilizes at a few nanoseconds per row. The measurement data bears this out: the gap between N=0 and N=1 in the gpu_timing table is small relative to the N=0 baseline itself, which is dominated by the fixed two-submit bracket overhead.

The same pump appears in every benchmark and test that issues write_buffer calls in a loop, including legacy_model_bench and gpu_timing.rs. It is deliberately placed in the untimed section - outside the Instant::now() bracket for CPU measurements and outside the measure_ns closure for GPU timestamp measurements - so the flush cost does not inflate the reported numbers.

3.6 Compaction - swap-and-pop with handle redirection

Dead rows accumulate holes. When an entity is freed, its row stays in place - marked dead in the liveness mask but occupying space in every column array. Compaction reclaims that space.

The algorithm is swap-and-pop. The last live row in the cell is moved into the hole. The row count shrinks by one. Handles that pointed at the moved row are redirected by a compaction callback before the move completes.

The callback marks the destination row dirty in every registered column mask — a moved row carries all of its mirrored columns to the new position, so all of them need re-uploading. The source row already has whatever dirty state it carried. After compaction the next sync uploads both the moved row's new position and any dirty bits from the old position.

The slot mirror is deliberately absent from that loop. It is not marked here, because sync_all's boundary scan detects moved slots on its own.

The slot registry absorbs the redirect. HandleRegistry::compact updates the slot-to-row mapping for every moved handle. The handle itself never changes - it still carries the same slot index and generation. A query that resolves the handle to a row gets the new position automatically. The slot column is updated atomically with the move.

Compaction cost is proportional to the number of holes, not the total entity count. A cell with 1000 live rows and 24 dead rows moves at most 24 rows. The loop is from = hole, to = last_live, not a full defragment.

The lease-gated variant compact_all_gated accepts a ready callback called once per cell. A cell reported not ready keeps its holes until the next boundary. This is the seam where lease-based compaction gating connects - a cell with outstanding harvest leases defers compaction until every lease drops or is revoked.

The compact_all function is exactly compact_all_gated with an always-true gate. This ensures the two can never silently diverge in behavior.

Compaction also interacts with the slot_shadow array. The shadow stores the last uploaded local slot value per row. When compaction swaps a moved row into a new position, the shadow at the destination row still holds the old slot value from before the swap. The boundary scan in sync detects this mismatch and re-uploads. No explicit shadow update is needed in the compaction callback.

3.7 Lease slots and generation-based retirement

free_deferred marks a handle for retirement without reclaiming its slot. The row is pinned in the liveness mask and queued against a submission serial from the SubmissionTracker. At the frame boundary, retire_all polls the completed watermark and drains every pending retirement whose serial has completed.

Lease slots provide a second protection mechanism. Each cell has a LeaseMask - a 64-bit atomic bitmask. A reader acquires a slot for the duration of a query. Pool exhaustion returns None, not a blocking call. The frame-boundary compaction checks any_held() is false before running swap-and-pop.

A HarvestLease pairs the lease slot with a revocation flag and wall-clock timestamp. The harvest pipeline revokes leases held past a 2.0 ms isolation budget. force_release includes an ABA guard - the mask bit clears exactly once, preventing a late Drop from releasing a reissued slot.

compaction_ready revokes overdue leases and returns !mask.any_held(). The safety argument: in-flight reads run against a pinned LivenessSnapshot, never the live mask or live rows. Compaction moving rows underneath the snapshot cannot tear a mid-way read.

Leases are caller-owned objects. Neither CellSlot nor SceneGpuStore carries a LeaseMask. Wiring one per registered CellId is a documented architecture change.

3.8 Spatial queries - AABB and frustum

SpatialCell holds six bounds columns (min_x through max_z) plus an optional transform and InstanceInfo column. The query predicate checks all six axis comparisons plus liveness. Results are written as a positional token array: out[row] = row on hit, NULL_ROW on miss. All comparisons use ordered IEEE predicates for bit-identical SIMD behavior.

The SIMD dispatcher checks for AVX2 at runtime, processing 8 rows per iteration on x86_64 and 4 rows per iteration on aarch64 via NEON. The scalar arm is the fallback on all other targets.

The AVX2 arm broadcasts the query bounds into 256-bit registers. It loads six columns per iteration via unaligned loads, evaluates all three axes with _mm256_cmp_ps using ordered predicates, ANDs the per-axis masks, ANDs the geometric mask with an 8-bit liveness window extracted from the appropriate u64 word, then uses _mm256_movemask_ps to get an 8-bit hit mask. Row indices are written per lane. The 8-bit liveness window never crosses a word boundary because the main loop steps by 8 and row/64 stays constant within each iteration.

The NEON arm follows the same structure with 128-bit registers and 4 rows per iteration. It uses vld1q_f32 for loads, vcleq_f32/vcgeq_f32 for ordered comparisons, vandq_u32 for bitwise AND, and extracts the 4-bit mask via vshrq_n_u32(geo, 31) followed by lane extracts.

The frustum scan follows the same pattern. Six planes, each with an inward normal [nx, ny, nz, d]. A point is inside plane p iff nx*px + ny*py + nz*pz + d >= 0. A box passes a plane if its positive vertex - the corner farthest along the plane normal - is inside.

The scalar reference short-circuits on the first failing plane. The SIMD arms compute all six plane tests and AND the masks. The result is identical because AND is idempotent. Evaluating every plane unconditionally also avoids branch mispredictions on the data-parallel workload, which matters at 100k+ rows per frame.

The dot product in the SIMD arms uses separate mul and add instructions - never FMA - because FMA's single rounding would diverge from the scalar reference's mul-then-add. Using FMA would produce slightly different results for borderline cases where the intermediate product's exponent range matters. The association ((nx*p x + ny*py) + nz*pz) + d is also fixed to match exactly, because f32 addition is not associative.

compress_tokens strips NULL_ROW sentinels from a positional token run. It appends base + token to a dense output array and the original run index to a remap array. The AVX2 arm processes 8 tokens per iteration using a compile-time permutation LUT that left-packs the hit lanes.

The LUT is a [[i32; 8]; 256] built at compile time via a const function. For each 8-bit hit mask, it stores the lane indices in ascending order at the front of the entry. The AVX2 arm loads the permutation vector for the current iteration's mask and uses _mm256_permutevar8x32_epi32 to left-pack both the dense values and the remap indices. Only the popcount(mask)-long prefix of each permuted register is appended to the output Vecs.

3.9 StreamingGrid - spatial domain management

The world is partitioned into streaming domains. Each cell starts in Outer residency and transitions through Margin to Inner as the observer approaches. The hysteresis band machine prevents oscillation via four concentric zones derived from each cell's base bounds:

pad defaults to 10% of cell width. hyst is an absolute world-unit value. The gap between promotion and demotion boundaries is the hysteresis band. Observer jitter inside the band triggers no transition in either direction.

Transition rules evaluate from the cell's committed domain. classify never mutates committed state - it only queues transitions for execution at the boundary. A declined promotion leaves the cell in its current domain for retry next frame.

Cross-fade alpha advances by world distance traveled. advance_crossfade moves alpha linearly by distance / fade_distance. execute_transitions is the one place the grid touches SceneGpuStore, calling register_cell for promotions and unregister_cell for evictions. VRAM budgets are validated at construction. write_cell_metadata packs alpha and domain for every materialized cell into the cell_metadata SSBO.

3.10 Harvest pipeline - GPU-side draw target extraction

The harvest pass runs after simulation on read-only data. It scans every cell's occupied rows, evaluates the spatial predicate, and routes valid tokens into class-specific staging arrays.

harvest_cell captures a liveness snapshot, runs the spatial query, and writes survivor tokens into a staging buffer. Three mesh classes exist: Traditional, VirtualGeometry, and HlodProxy, each routing into a separate staging array with a positionally-aligned generation column for downstream cull validation.

The Density Efficiency Index selects between plain and DEI-compacted paths. When DEI drops below 0.25, a SIMD compress-store path replaces the plain filter-and-offset scan and appends a remap-table segment. The NULL_ROW sentinel is dropped before the offset addition in both paths.

HarvestStaging is persistent across frames. clear() truncates every token and generation vec to zero length but keeps the capacity, so a steady-state frame does no allocation at all. There is no shrink path: a burst frame that grows the staging arrays leaves them grown for the rest of the process. That is a deliberate trade — the arrays are bounded by the largest view's hit count, and reclaiming them would mean paying the reallocation again on the next burst.

ViewTokenBuffers is the device-side landing point for the staging arrays. It owns two SSBOs per class - one for tokens, one for expected generations. It grows on demand with a 1.5x factor and never shrinks. Upload issues two write_buffer calls per non-empty class column.

Empty columns issue zero write_buffer calls. The count() returns 0, and a consumer dispatching over count() naturally dispatches zero threads.

revalidate_run is the stale-validation lane for revoked leases. It takes a positional token run and the cell's live liveness mask, overwriting any token whose row has since died with NULL_ROW. Returns the surviving count.

This operates on positional local token runs only - never on the global (region-offset) tokens from HarvestStaging. A global token would misindex the cell's liveness words or silently check the wrong row. The function is only valid within the issuing frame, before compaction could reuse any freed slot. A run carried across a frame boundary needs a fresh query.

The multi-view harvest driver harvest_views scans every (cell, region_base, class) against every view, routing each view's hits into its own scratchpad and staging array. Queries over different views may run on separate threads - the pipeline holds no mutable state and each view has its own scratch buffers.

3.11 GPU-native benchmarks

Three benchmarks measure the GPU layer's performance. Two are integration benchmarks with their own harnesses. One is a criterion benchmark that exercises the boundary, harvest, and DEI paths.

legacy_model_bench

The centerpiece measurement compares SceneDB delta-sync against a full-upload baseline at scene sizes from 1000 to 100000 entities and mutation percentages from 0% to 100%. The fixture uses the realistic multi-cell shape, scenes split into 1024-row cells matching the page capacity.

The legacy model is deliberately an upper-bound faithful simulation, not a caricature. It builds a fresh Vec<[f32; 16]> covering every cell's full capacity every frame and issues one write_buffer per cell. No serde, no BVH rebuild, no entity destroy/recreate in the loop - though the real sync_scene path pays for all three on top of the clone and upload. The measured legacy cost is therefore a lower bound.

The pump discipline ensures every iteration ends with queue.submit(empty()) + device.poll(wait). Without this, the pending-writes staging belt grows unbounded - critical for the 100k scene where each legacy frame uploads 6.4 MB.

Results across three scene sizes and five mutation rates:

At 0.1% mutation on 100k objects, SceneDB transfers 6,400 bytes against legacy's 6.4 MB - a 1,003x bandwidth reduction. CPU time is 172 us against 1,017 us, a 5.9x speedup. At 1,000 objects the picture is muted: 3.46x at zero mutation, but only 1.02x to 1.57x once anything is moving, with absolute costs in single-digit microseconds where the fixed boundary overhead dominates.

The crossover where delta stops winning on CPU time sits at M=100% at every scene size - 0.37x at S=1,000, 0.76x at S=10,000, 0.69x at S=100,000. This is the expected shape, not a defect. When every row is dirty, delta-sync does all the work a full upload does and then pays extra for the run-coalescing scan and the per-range write_buffer calls on top. Note that the small scene loses hardest: at S=1,000 the fixed overhead is a larger fraction of a smaller total. A scene that genuinely rewrites every transform every frame should upload the whole buffer, and the byte-ratio column shows why the delta path never gets to claim a bandwidth win there either - 1.00x to 1.02x.

The scattered-vs-contiguous comparison at S=10000, M=1%:

Same byte volume, 9.8x more ranges, 1.48x more CPU time. The byte volume is identical because both paths mutate 1% of rows. The range count grows with the number of runs, not the row count.

The GPU-ns pair at S=10000, M=1% amplifies 32 copies of the scene to overcome the two-submit bracket's fixed overhead. Delta mean 485 ns/cell, full-upload mean 12940 ns/cell.

SIMD spatial query scaling

Even the largest tier fits in L3. At 1,000,448 rows the six f32 bounds columns are 24 bytes per row (about 23 MiB) and the output token array adds another 4 bytes per row (about 3.8 MiB), for a working set near 27 MiB. The 9950X3D advertises 128 MB of L3, but that figure is the sum across two CCDs and no single core sees all of it - the relevant number for a single-threaded scan is the 96 MB on the V-Cache die (32 MB base plus 64 MB stacked), against which 27 MiB has better than 3x headroom. The near-flat ns/row across a thousand-fold range in N is the tell: the kernels are compute-bound at every tier, not memory-bound.

gpu_timing.rs

This harness measures GPU-side nanosecond timing for the boundary-sync delta path against the binary payload model. It uses a two-submit timestamp bracket - the only ordering wgpu guarantees for the pending-writes belt.

The file doc explains the bracket ordering in detail. Queue::submit_pending_submission splices the pending-writes command buffer at position 0 of every submission. A single-submit bracket with both timestamps in the same submit() call would run the copies before both timestamps. The two-submit form guarantees [timestamp 0] - [pending writes] - [timestamp 1].

The harness sweeps N in {0, 1, 64, 1024} contiguous dirty rows. Each measurement is amortized across 256 independent cells per bracket.

scenedb_bench (criterion)

region_sync_1024_dirty_rows measures the CPU-side cost of syncing a fully-dirty 1024-row region. Each iteration uses iter_custom to bracket only the boundary run, with the mark-dirty step and the pump both untimed.

harvest_partition_1024 measures pure-CPU harvest cost for a 1024-row cell at 50% selectivity - the plain path with no DEI compaction. The fixture distributes boxes from x=[0,1] to x=[1023,1024], and the query [-0.5, 511.5] hits exactly 512 rows.

dei_compact_1024_sparse measures the same cell at 12.5% selectivity, forcing the DEI-compacted path. The query [-0.5, 127.5] hits 128 out of 1024 rows, well below the 25% DEI threshold.

promotion_demotion_cycle measures one full register - unregister - force-complete - drain cycle. Each iteration creates a region for a 64-row cell, destroys it with a pinned serial, force-completes the serial via tracker.force_complete(), and drains the region pool via retire_all.

Together these pieces form the substrate that Helio's shaders bind against. The SSBOs are the bridge between CPU and GPU - one index space, one handle format, one set of generation-validated slots.

4. Cross-Device Contract

4.1 One crate, two configurations

SceneDB ships as a single crate. The core has zero GPU dependencies. The gpu feature adds wgpu and the full GPU-resident store. Two configurations from one Cargo.toml.

Three features, and the default is the empty set. gpu pulls in wgpu and the device-resident store. telemetry implies gpu — there is nothing to report on without it — and adds the socket and serialization deps the dashboard feed needs.

cargo check --no-default-features passes on any target that supports std. No GPU crate, no GPU API, no platform-specific install. The core compiles on macOS without Metal, on Linux without Vulkan drivers, on Windows without DX12 SDK headers. A headless server, a build farm node, or an editor running in non-rendering mode all use the same binary path.

No conditional compilation in the core modules. No #[cfg(target_os)] branches to exclude GPU code. The GPU module is entirely feature-gated at the module inclusion level.

All GPU integration tests carry required-features = ["gpu"] in Cargo.toml. Running cargo test -p pulsar_scenedb without the gpu feature skips them silently. Running with --features gpu includes them.

The two GPU benchmarks, gpu_timing and legacy_model_bench, carry the same gate.

The wgpu dependency is optional and version-pinned independently - SceneDB does not use the workspace-level wgpu fork.

This split is the foundation for every cross-device claim. The CPU side is authority. The GPU side is an optional derived mirror. A developer can edit, test, and benchmark the storage layer on a machine with no GPU at all.

4.2 Rust to WGSL to backends

The slot mirror is the canonical example. On the Rust side it is a SceneBuffer<u32> with T: Pod, allocated once at capacity and never resized. On the WGSL side it is a read-only storage array of u32.

Both sides see the same 64-byte aligned SoA layout. The WGSL struct uses scalar fields exclusively - never vec3<f32>, which carries 16-byte alignment in WGSL and would shift every downstream offset relative to the Rust side.

That layout equivalence is not asserted by hand. SceneDB's gpu_layout test declares the WGSL for every shared struct, parses it with naga, runs naga's own Layouter over it, and asserts the reflected size and every member offset against size_of and the Rust field order. MeshMetadata is checked at 72 bytes across all eighteen WGSL members — the Rust side declares eleven fields, three of which are fixed-size arrays that the shader spells out as individual scalars, which is exactly the kind of divergence a size-only check would wave through. ClusterNode is checked at 48, MeshletEntry at 32, MaterialRow at 64, InstanceInfo at 8, and the instance transform at 64. If either side moves a field, the test fails on the offset that shifted.

The phase machine enforces a different kind of cross-device contract. On the CPU side, SimulateA and SimulateB implement a sealed SimulateWitness trait. write_transform takes &impl SimulateWitness. A HarvestPhase reference fails to compile where a SimulateA reference passes. No external code can implement the sealed trait.

The bridge between the two worlds is the submission serial. The CPU assigns a monotonic serial to every queue submit. BoundaryPhase::retire polls completed serials and drains the deferred-retire queue. A slot whose GPU-side generation has been incremented is safe to recycle because the semaphore callback guarantees every previous frame that referenced the old generation has finished. The GPU shader reads the generation buffer and validates handles. The CPU never writes the generation buffer until the GPU has signaled completion.

The Rust compiler enforces the phase machine. The GPU driver enforces the timeline. Between them sits the self-healing slot mirror, which catches any staleness the type system or the semaphore missed.

Translated across all four backends:

The shader never inspects phase state. It reads buffers. The phase machine is a CPU abstraction that translates to a submission ordering constraint. WGSL does not need sealed traits because the shader never needs to know which phase is running.

The as_bytes utility is the single point where Rust types cross to the GPU. It reinterprets a Pod slice as &[u8] for queue.write_buffer.

No struct-by-struct serialization. No encoding pass. The byte representation is the Rust representation. The WGSL struct is hand-authored to match. The 64-byte column alignment in the page layout guarantees that a write_buffer spanning rows N through M writes a contiguous range of GPU memory with no holes. The column start in the GPU buffer is column_index * element_stride * region_base bytes. The Rust column is a flat slice. The two are the same layout by construction.

4.3 How Vulkan, Metal, DX12, and WebGPU each see the same data

Every SceneDB GPU buffer uses storage usage flags.

Every SceneDB buffer is created with the same base triple, STORAGE | COPY_DST | COPY_SRC. COPY_DST is the upload path. COPY_SRC is uniform across all of them so that any buffer can be copied out for a debug capture or an integration test's readback, not because any of them is read back in the steady state.

• Transform buffer: wgpu BufferUsages::STORAGE | COPY_DST | COPY_SRC. Vulkan: VK_BUFFER_USAGE_STORAGE_BUFFER_BIT | VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_TRANSFER_SRC_BIT. Metal: MTLResourceUsageStorage with MTLResourceStorageModePrivate. DX12: D3D12_RESOURCE_STATE_UNORDERED_ACCESS (read via SRV). WebGPU: GPUBufferUsage::STORAGE | COPY_DST | COPY_SRC.
• Generation buffer, slot mirror, cell metadata: identical usage.
• Mesh registry, material registry, cluster DAG, meshlet buffer: identical usage.
• GeometryArena vertex buffer: adds VERTEX usage.
• GeometryArena index buffer: adds INDEX usage.

No buffer uses UNIFORM. The 64 KB uniform buffer limit on many GPUs would cap scene size. No buffer uses INDIRECT indirect draw buffers are Helio-owned per-frame scratch, not SceneDB-owned scene state.

The bind group is the same across all backends. It is declared once, on the renderer side, in the helio-scenedb seam crate that sits between the two systems - SceneDB itself ships no shaders, only the buffers and the layout contract they honour.

Every entry is read. Nothing GPU-side ever writes back into a SceneDB buffer, which is what makes the CPU column unambiguously the source of truth — and, incidentally, what makes it sound for the sync path to re-upload a clean row's bytes if a coalescing heuristic ever decides to.

Eight storage buffers. WebGPU's default per-stage limit is 8. The bind group fits, exactly. If a backend supports more (Vulkan exposes far higher descriptor limits), Helio can use them for its own derived buffers. SceneDB does not need to change.

The dirty mask never crosses the device boundary. It lives on the CPU side in CellGpuState, implemented as a bitvec-compatible word array indexed by row. At the frame boundary, sync_all iterates the mask, coalesces adjacent marked rows into ranges, and issues one queue.write_buffer per range. The GPU receives only the payload bytes.

No mask upload. No per-row flags in the buffer. No GPU-side tracking. The SyncStats struct records ranges and bytes. Zero dirty rows means zero GPU writes. The coalescing pass produces at most one write per dirty segment. At 0.1% mutation on 100k rows, that is a handful of segments typically one or two.

No scene data ever flows GPU-to-CPU. The only thing crossing back is a signal, not a payload: queue.on_submitted_work_done fires a callback when the GPU finishes a submission, and the callback marks that serial complete. BoundaryPhase::retire polls the completed watermark, drains the deferred-retire queue, and writes the new generation values into the host-side registry and out to the device with an ordinary write_buffer. The generation buffer is written CPU-to-GPU only, gated on the completion signal. There is no map, no readback, no stall — which is why the retirement path costs nothing on the frame it runs.

Bindless limits, indirect draw counts, and texture format support all differ across Vulkan, Metal, DX12, and WebGPU. SceneDB does not care about any of them. It produces one bind group layout, eight storage buffers, and a single write_buffer path for uploads. Cross-platform complexity lives in Helio. SceneDB's eight buffers are eight buffers on every backend.

A frame that renders identically on Vulkan and WebGPU is the architectural outcome of a layer boundary that treats the GPU as a consumer, not a co-owner.

The CPU is authority. The GPU is mirror. Every backend sees the same mirror.

5. What Consumes This: GPU-Driven Culling and Indirect Draw

Everything to this point ships in pulsar_scenedb today. This section is the other side of the seam - the consumer design the store was built to feed. The shaders described here are Helio's, not SceneDB's; the repository contains no .wgsl files at all, only the buffers, the layout contract, and the naga reflection tests that hold the two declarations together. It is included because the store's shape is otherwise unmotivated: the generation buffer, the slot mirror, and the aligned expected-generation column exist for exactly the validation described below, and are hard to justify without it.

5.1 The Cull Pass

The cull pass runs once per view. The compute shader receives a dense token array and aligned expected-generation column from view_upload.rs - that half is real and shipping, and is what §3.10 harvests into. Each thread validates one token: generations[slot_mirror[row]] must equal expected_gen[i]. A mismatch means the slot was retired or recycled since harvest, and the token is dropped. Once the generation check passes, the shader reads InstanceInfo.mesh_index, bounds-checks it against the mesh table length, fetches the local AABB, computes the world-space AABB, runs the near-plane pre-test, and evaluates frustum culling against six view planes.

The bounds check on mesh_index is not defensive padding. A row in a recycled region that was never written may still hold a prior tenant's bytes, so mesh_index is untrusted until the row has passed both the liveness gate and the generation check - the shader treats it as adversarial input.

Survivors need a draw command. The shader performs a bounded atomic allocation against a per-view command counter. If the slot is within MAX_BUFFER_CAPACITY, it writes the DrawCommand and visible_instance_ids[slot] = row. Overflow commands are silently dropped; the CPU reads the counter back and clamps. The draw executor issues multi_draw_indexed_indirect over the per-view command buffer with a WGSL shader that fetches transforms via visible_instance_ids[first_instance].

5.2 Mesh Shaders and Virtual Geometry

The traditional pipeline culls at the object level and emits one draw per visible entity. Virtual geometry needs finer granularity. Each entity is a cluster DAG. Each DAG node references a range of meshlets. The GPU decides per meshlet whether it survives culling and is worth rasterizing.

The cluster DAG buffer is a global SSBO indexed by cluster_table_offset. The meshlet buffer sits beside it: 32 bytes per meshlet holding bounding sphere, packed normal cone, geometry offset, and vertex/triangle counts. Both buffers are owned by SceneDB, allocated at startup, never resized.

The culling pipeline is two-stage. A preliminary compute pass runs object-level frustum and Hi-Z tests. Survivors produce task payloads for the task shader, which receives one workgroup per surviving entity. Each thread handles one stable slot from the generation buffer, validating the handle then walking the entity's cluster DAG.

The DAG traversal selects nodes by projected screen-space error. Selected nodes produce a meshlet list. Each meshlet undergoes backface cone and frustum tests. Survivors are amplified into mesh shader workgroups that transform and emit geometry. The task shader decides what survives; the mesh shader only transforms and emits.

5.3 HLOD and the Streaming Grid

The concentric cell streaming model divides the world into three domains. Without HLOD proxies, outer buffer cells produce nothing. Every cell has a pre-baked HLOD proxy: a heavily decimated mesh registered in the global mesh registry. Helio treats it like any other mesh. The proxy is addressed by a cell-level handle and bypasses the meshlet pipeline.

The proxy draw list is built from the grid's materialized cell set. The driver iterates every cell whose domain is Outer or Margin-fading and emits a draw command for its proxy. Stub proxies start as colored bounding-box meshes; authored proxies use the standard asset pipeline.

Cross-fade between L0 and HLOD uses the hysteresis mechanism with dithered screen-space stippling. Exactly one representation renders at any pixel during the transition. The streaming grid budget system manages VRAM for proxy meshes against worst-case observer positions.

6. Test Tool

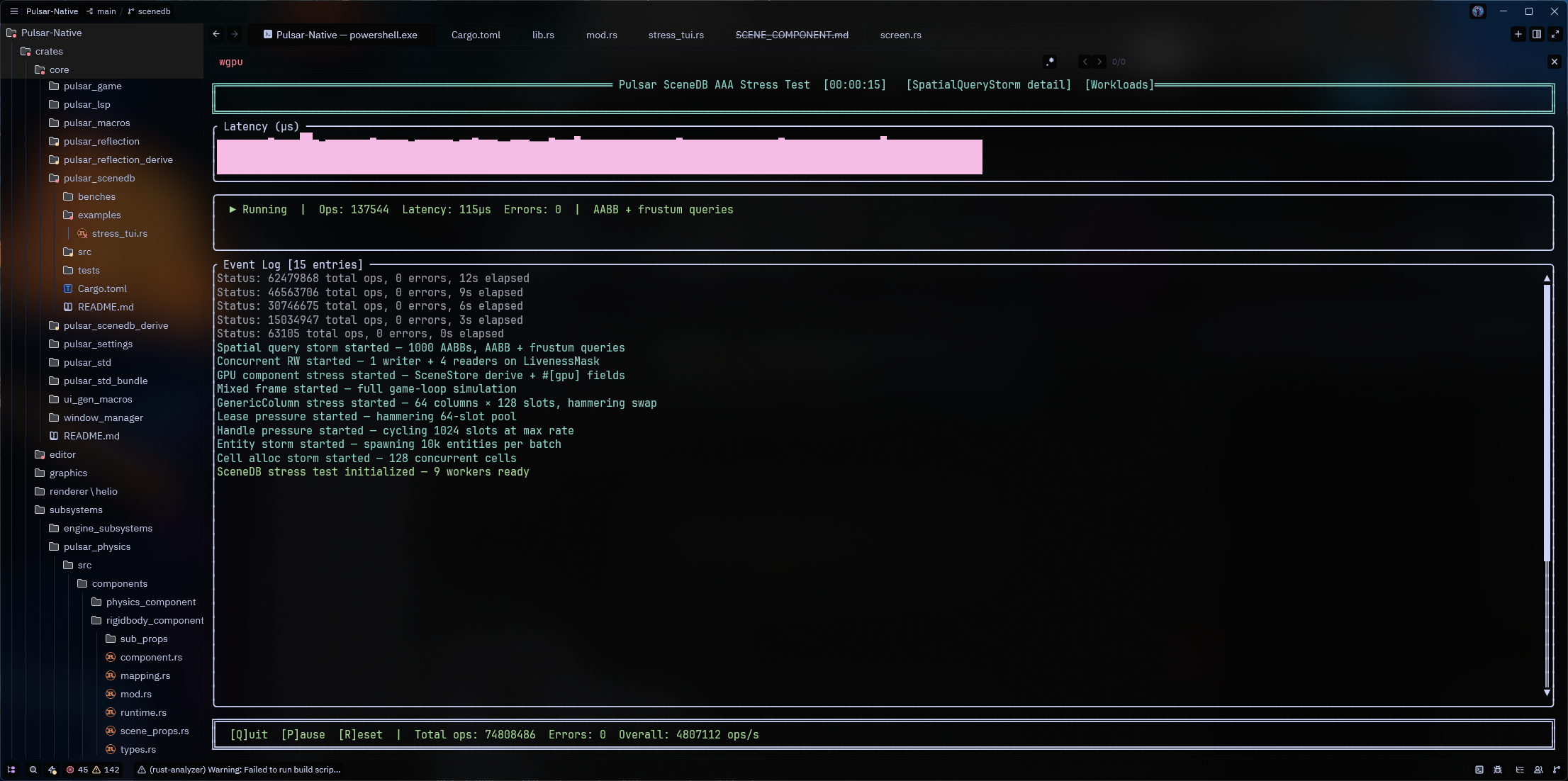

The SceneDB stress test TUI is an interactive terminal dashboard that runs nine concurrent workloads against the storage layer. It was the primary tool used to surface the GenericColumn init-bit desync bug and validate the fix across thousands of iterations.

⛶ Fullscreen

Each workload runs on its own thread and hammers a specific subsystem:

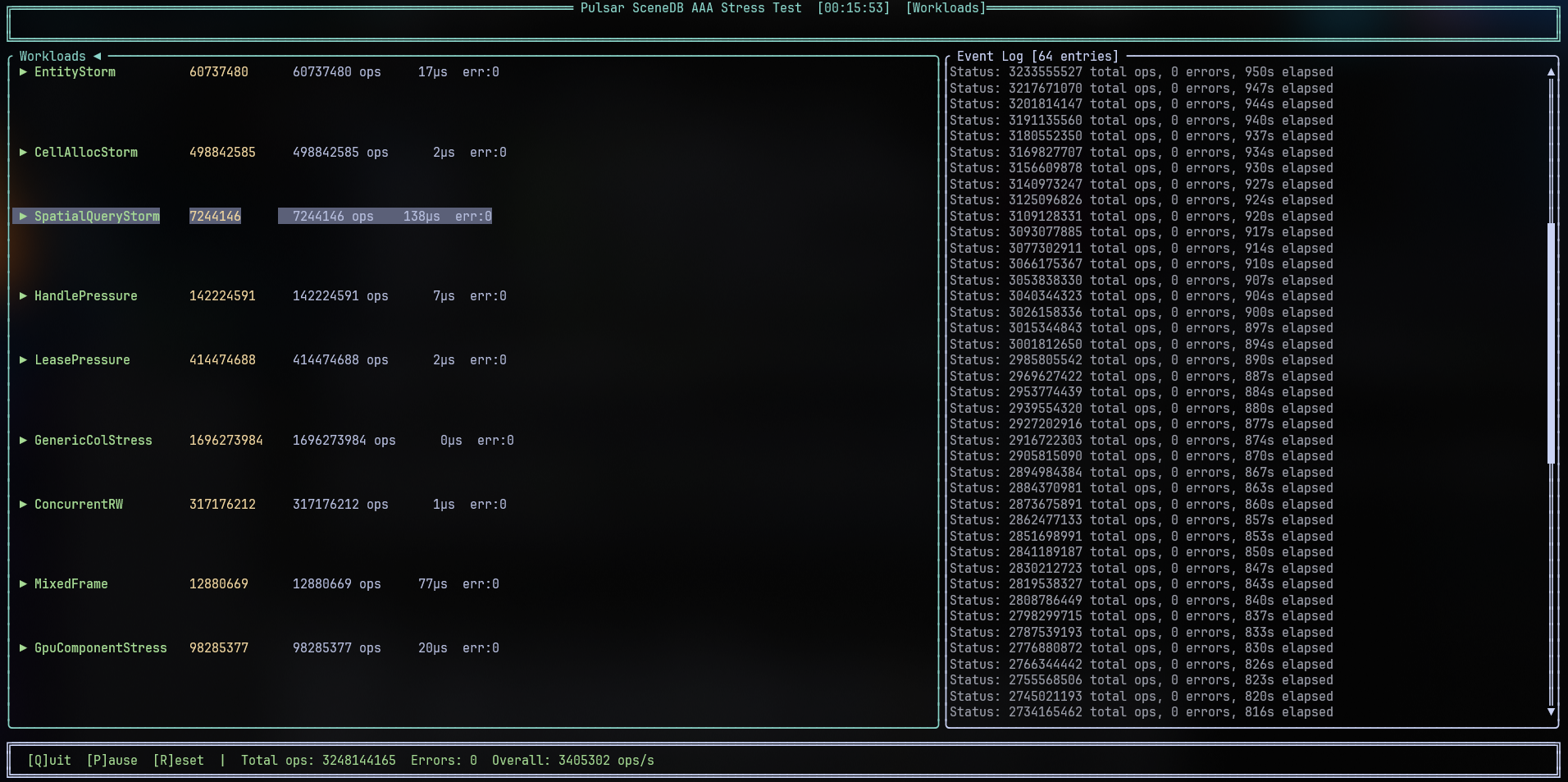

The TUI provides keyboard-driven navigation. Tab cycles focus between the workload list and event log. Arrow keys move the cursor or scroll the log. Enter or d opens a detail view for the highlighted workload showing a latency sparkline and per-second stats. Keys 1 through 9 jump directly to a workload's detail. p pauses all workloads, r resets counters, and q quits.

⛶ Fullscreen

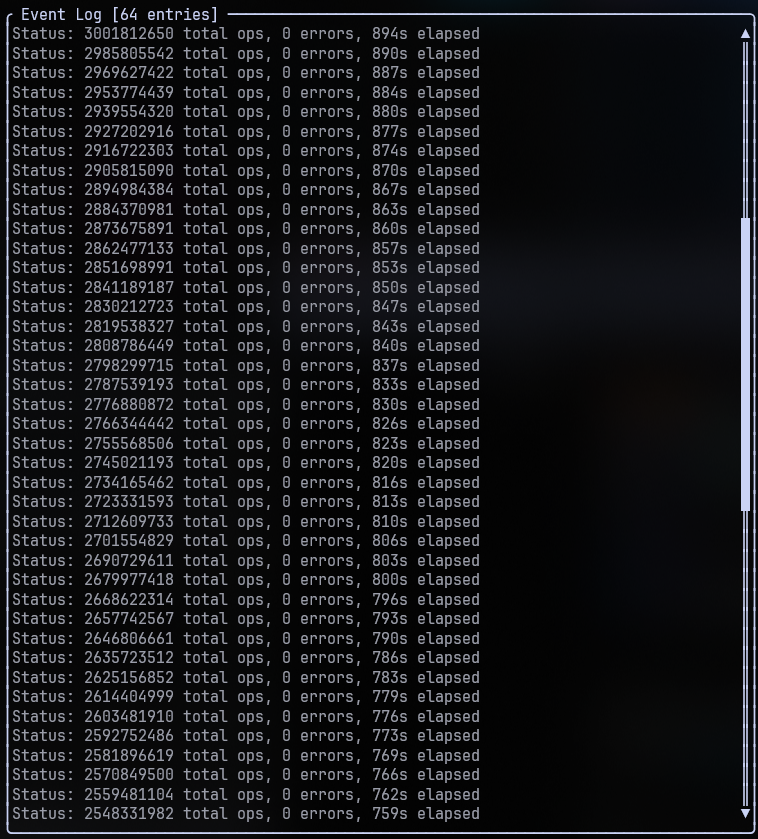

The event log records lifecycle events — workload start/stop, pause/resume, counter resets, and periodic status summaries every three seconds. Errors are highlighted in red. The log scrolls with PgUp/PgDn, Home/End, and arrow keys when focused.

⛶ Fullscreen
